High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m

Brand Name : SS

Certification : SGS

Place of Origin : CHINA

MOQ : 10 pcs

Price : US $6-10 / Pieces

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs/week

Delivery Time : 10-15days after confirming the order

Packaging Details : 500pcs/pallet or according to customer's requirement.

material : galvanized

thickness : 0.3mm - 0.5mm

Rib Distance : 100mm, 150mm,75mm

Width x length : 610 x 2440 mm

application : construction,building

Reinforced spacing : 150mm

certificated : SGS

sample : free

weight : 0.4-0.8kgs/m2

hole size : 16*11mm, 7*11mm

Contact Now

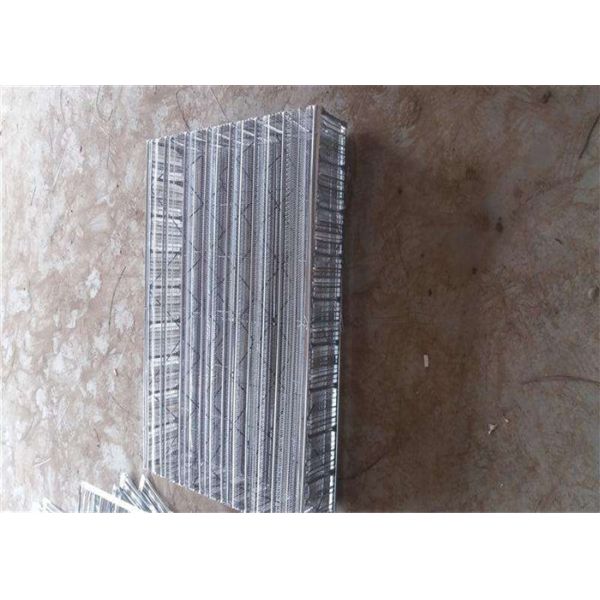

Building materials 0.45mm Galvanized expanded metal rib lath 2500m/expanded metal high rib lath

Rib lath is mostly used as concrete permanent dismantle free template for civil engineering such as tunnel, bridge, raft-style foundation, sewer system, subways, retaining wall, nuclear power station, docks, storing tanks, skyscrapers, ocean engineering and irregular or curved shapes. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.

High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m

Rib Lath Product parameters

1. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight
SW×LW/mm	M.T/mm	R.H.mm	R.D./mm	Wt kg/m2	Sheet size
4.5×15	0.3	4	75	1.26	610/750×2440
4.5×15	0.35	4	75	1.47	610/750×2440
4.5×15	0.4	4	75	1.68	610/750×2440
4.5×15	0.45	4	75	1.89	610/750×2440
4.5×15	0.5	4	75	2.10	610/750×2440

2. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight
SW×LW/mm	M.T/mm	R.H.mm	R.D./mm	Wt kg/m2	Sheet size
4.5×15	0.3	8	150	1.25	610×2440
4.5×15	0.35	8	150	1.46	610×2440
4.5×15	0.4	8	150	1.67	610×2440
4.5×15	0.45	8	150	1.88	610×2440
4.5×15	0.5	8	150	2.09	610×2440

3. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight
SW×LW/mm	M.T/mm	R.H.mm	R.D./mm	Wt kg/m2	Sheet size
10×17	0.3	8	75	1.06	610×2440
10×17	0.35	8	75	1.23	610×2440
10×17	0.4	8	75	1.41	610×2440
10×17	0.45	8	75	1.59	610×2440
10×17	0.5	8	75	1.76	610×2440

4. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight
SW×LW/mm	M.T/mm	R.H.mm	R.D./mm	Wt kg/m2	Sheet size
10×18	0.2	8	150	0.45	610×2440
10×18	0.25	8	150	0.56	610×2440
10×18	0.3	8	150	0.68	610×2440
10×18	0.35	8	150	0.79	610×2440
10×18	0.4	8	150	0.90	610×2440
10×18	0.45	8	150	1.01	610×2440
10×18	0.5	8	150	1.13	610×2440
10×18	0.6	8	150	1.35	610×2440

5. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight 3/8 Rib Lath(Hi Rib )
Finish	Wt.per Sq.Yd.	Sheet Size	Pes.Bdl	Yds/Bdl	Yds/Pallet
Galv.	3.4lbs	27”×96”	10	20	1000

GI rib lath

HoleSize:4.5mmx15mm,5mmx10mm,10mmx20mm,9x20mm,8mmx20mm,10mmx16mm,10mmx18mm
Sheet Thickness:0.3mm-0.6mm
Rib Length:4mm,8mm
Rib Distance:75mm,150mm
Width:600mm,610mm
Length:2200mm,2440mm

High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m

Packaging

Rib lath are packed 500pcs/pallet, or according to your requirement,

High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m
