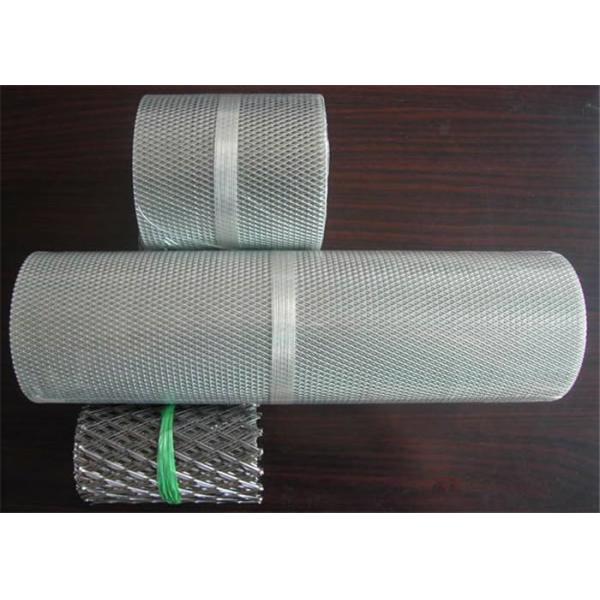

304 316 316l Expanded Wire Mesh , Stainless Steel Diamond Shape Expanded Mesh Fabric 5 - 80mm Length
Expanded wire mesh / expanded metal sheet / expanded metal fence/expanded metal mesh
1.Materials:Aluminum plate, thin low carbon steel plate, stainless steel plate, AL-mg alloy plate, copper plate, nickel plate.
2.Characteristics: strong, wear-resisting, artistic and tasteful.
3.Uses: Used widely in road, railway, civil building, water conservancy's building; the protecting of all kinds of machines, electrical equipment, window and aquatic product's breed.
| Specifications of Expanded Metal Mesh |
| Thickness(mm) | SWD(mm) | LWD (mm) | Wire Stem Width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1.0 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2.0 | 0.73 |
| 0.6 | 10 | 25 | 1.0 | 0.6 | 2.0 | 1.0 |
| 0.8 | 10 | 25 | 1.0 | 0.6 | 2.0 | 1.25 |
| 1.0 | 10 | 25 | 1.1 | 0.6 | 2.0 | 1.77 |
| 1.0 | 15 | 40 | 1.5 | 2.0 | 4.0 | 1.85 |
| 1.2 | 10 | 25 | 1.5 | 2.0 | 4.0 | 2.21 |
| 1.2 | 15 | 40 | 1.1 | 2.0 | 4.0 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4.0 | 2.77 |
| 1.5 | 23 | 60 | 1.5 | 2.0 | 3.6 | 2.77 |
| 2.0 | 18 | 50 | 2.6 | 2.0 | 4.0 | 3.69 |
| 2.0 | 22 | 60 | 2.1 | 2.0 | 4.0 | 3.69 |
4.Kinds:
Thickness available from 0.5mm to 8mm.
LWM: 3.0MM-100MM
SWM: 2.0MM-80MM
Strand Thickness: up to 8.0MM
Strand Width: 0.3MM-8.0MM
Expanded metal mesh at length from 600-4000mm and width from 600-2000mm.
| Specifications of expanded metal mesh |
| Tickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4 |
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful
Used as decorative mesh for building outer wall ,radiator cover mesh
Easily fabricated, finished, installed and formed

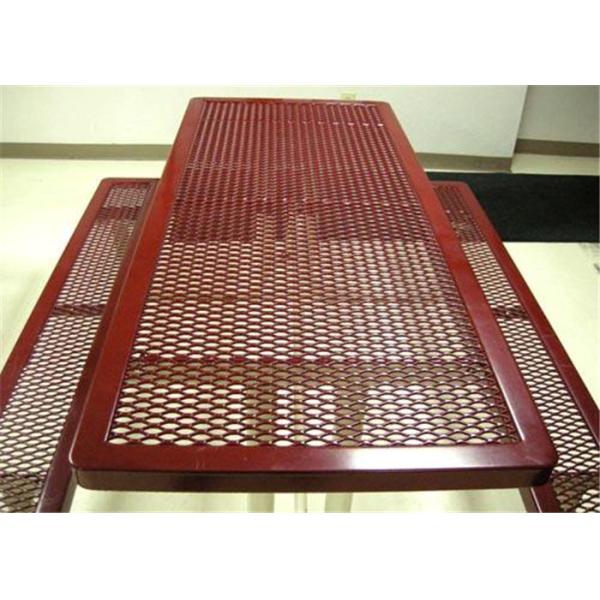

Application
expanded metal used with concrete in buildings and construction, maintenance of equipment,
making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,
studio,highway.
Packaging Details: 1)in rolls: water-proof paper inside and plastic film outside
2)in sheets: on the pallet, water-proof paper and plastic film outside
Delivery Detail: 5-20days based on your order quantity
