metal grate flooring/stainless steel grates/metal grate flooring/steel bar grating/steel grate flooring/grating

Brand Name : SS

Certification : SGS

Place of Origin : CHINA

MOQ : 10 pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs/week

Delivery Time : 10-15days after confirming the order

Packaging Details : 1. Packaged with metal bandage and paperboard, generally applies to neat steel plate 2. Fixed with Screw rod, use 4 screw rods through the aperture of the steel grid, with the assurance of screw locking method 3. Tray guarantee, generally for export packin

Price : $10.99 - $35.99 / Pieces

material : hot-dipped galvanized

Bearing bar pitch : 20,25,30,32.5,34.3,40,50,60

Cross bar pitch : 40, 50, 60, 65, 76, 100, 101.6

Cross bar size : 5X5, 6X6, 8X8mm

application : floor

Bearing bar thickness : 2.5mm-10mm

Length : 1m, 2m, 5.8m, 6m, etc

width : 900mm, 1000mm, etc

certificated : SGS

Contact Now

metal grate flooring/stainless steel grates/metal grate flooring/steel bar grating/steel grate flooring/grating

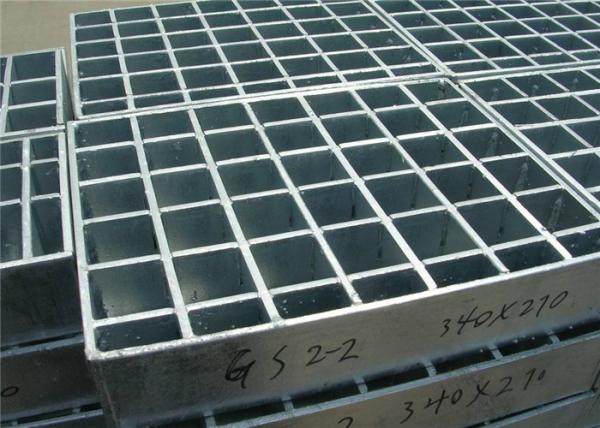

Steel Bar Grating description:

1)Raw material :Low carbon steel, stainless steel, aluminum alloy

2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.

3)Cross bars shape: square bars, twisted square bars,round bars

4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers’ requirement.

metal grate flooring/stainless steel grates/metal grate flooring/steel bar grating/steel grate flooring/grating

Steel Grating Flooring Detail:

No. Item Description
1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Standard

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS

Metal Grate Flooring advantage :

Light weight,great load-bearing capacity,non-slip and safe,easy installation,material-economic,sturdy and durable,

ventilated,easy to clean and attractive appearance.

Bearing bar pitch at 60mm
is especially for mining industrial production, the bearing bar pitch is 60mm, it solved the mineral splash in a hallway behind accumulation problems, often used in mineral mining and processing project . for more save material, is the best choice of condole top
Bearing bar pitch at 30mm
For the checker plate grating of the most commonly used models, the bearing bar pitch is 30mm. conform to the united states ,Australia , japan, and other countries. For this series of checker plate grating are the most dense and have the highest strength ,suitable for all kinds of application.
Bearing pitch at 40mm
For the checker plate grating of the most economic and light model, the bearing pitch is 40mm. accord with Britain, germany, france and japan standards specified fixed platform, aisle and stair step specification . often used in belt corridor ,warehouse shelves , the attic panel , shallow bridge ,guard railing ,sun shading etc

metal grate flooring/stainless steel grates/metal grate flooring/steel bar grating/steel grate flooring/grating

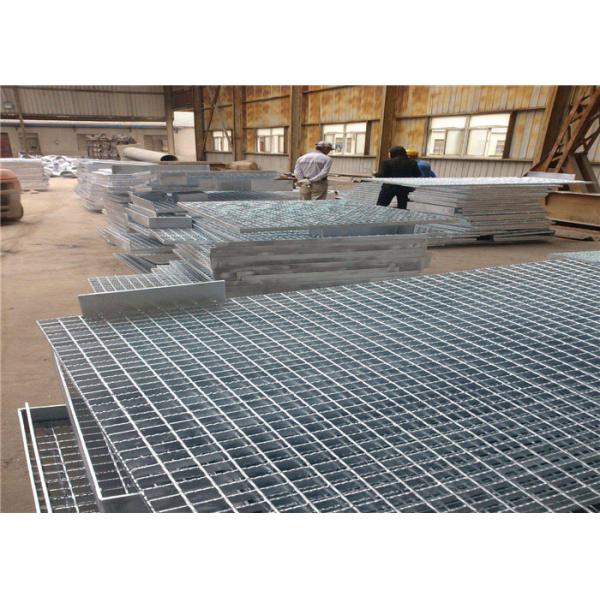

Packaging & Shipping

Packed in bundle then fixed by steel belt as the general export package and we also could pack it according to customers' requirement.

metal grate flooring/stainless steel grates/metal grate flooring/steel bar grating/steel grate flooring/grating

metal grate flooring/stainless steel grates/metal grate flooring/steel bar grating/steel grate flooring/grating

Hot to order steel bar grating ?

· It’s better that you can provide drawings with detailed information like raw material, grating type, surface treatment, quantities, etc.

· If you are not able to provide the drawing, we will design for free according to your specific applications.

· A free design will need information like: area of application (industrial platform, airport, docks, etc.), drawings of this area with detailed dimensions, boundary conditions, etc.
