SS302 304 Fine Wire Mesh Screen For PP PE Plastic Industry SGS Standard/SS 304 10m length dutch weave wire mesh

Product Categories
HE BEI SHANG SHUN WIRE MESH PRODUCTS CO.,LTD .
Contact Now

SS302 304 Fine Wire Mesh Screen For PP PE Plastic Industry SGS Standard/SS 304 10m length dutch weave wire mesh

  • 1
  • 2
  • 3

Brand Name : SS

Certification : SGS

Place of Origin : CHINA

MOQ : 1 Square Meter

Price : US $15.86 / Square Meter

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500000 Roll/Rolls per Month

Delivery Time : In 3days for goods in stock

Packaging Details : inside use water-proof paper, and then outside use plastic bags, outside wooden pallets or wooden cases, also we can as your requirements.

material : stainless steel wire

length : 10m

wire dia : 0.017-4.0mm wire dia

Weave Style : Dutch Weave

application : belt

grade : SS302 304

Contact Now

SS302 304 Fine Wire Mesh Screen For PP PE Plastic Industry SGS Standard/SS 304 10m length dutch weave wire mesh

Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

Reverse Twill Dutch weave wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth. The weaving process allows for the use of very fine wires, producing filtering mesh for gas and liquid applications. We also provide Herringbone and Broken Pattern Reverse Twill Dutch Weave Products.
SS302 304 Fine Wire Mesh Screen For PP PE Plastic Industry SGS Standard/SS 304 10m length dutch weave wire mesh
Specification

meshwire diameter(mmweight (kgs/m2)
72*150.45*0.554.8
120*160.35*0.454.485
132*180.35*0.454.95
152*240.30*0.454.635
160*170.27*0.453.777
170*170.27*0.453.9586
180*190.26*0.454.0
200*400.17*0.272.17
260*400.15*0.252.09
325*400.13*0.241.95
SS302 304 Fine Wire Mesh Screen For PP PE Plastic Industry SGS Standard/SS 304 10m length dutch weave wire mesh

Material:stainless steel wire or brass wire
Two sizes of wire diameter: The coarser wire in the weft direction and the finer wire in the warp direction.
Weaving type: plain weave and twill weave
Mesh:48 × 10 mesh RDPW 400 nominal micron
72 × 15 mesh RDTW 250 nominal micron
132 × 17 mesh RDTW 200 nominal micron
152 × 30 mesh RDTW 115 nominal micron
260 × 40 mesh RDTW 75 nominal micron
SS302 304 Fine Wire Mesh Screen For PP PE Plastic Industry SGS Standard/SS 304 10m length dutch weave wire mesh

Mesh List
MESH
WIRE DIA (MM)
WIDTH (MM)
LENGTH (M)
63 X 18
0.30 X 0.40
95-400
10 OR 20
107 X 20
0.24 X 0.40
95-400
10 OR 20
175 X 44
0.15 X 0.30
95-400
10 OR 20
132 X 32
0.20 X 0.40
95-400
10 OR 20
290 X 70
0.09 X 0.20
95-400
10 OR 20
615 X 102
0.04 X 0.16
95-400
10 OR 20
720 X 140
0.035 X 0.11
95-400
10 OR 20
45 X 15
0.45 X 0.6
95-400
10 OR 20
72 X 15
0.45 X 0.55
95-400
10 OR 20
120 X 16
0.35 X 0.45
95-400
10 OR 20
132 X 17
0.3 X 0.45
95-400
10 OR 20
152 X 14
0.3 X 0.40
95-400
10 OR 20
160 X 18
0.28 X 0.45
95-400
10 OR 20
200 X 40
0.15 X 0.27
95-400
10 OR 20
260 X 40
0.15 X 0.27
95-400
10 OR 20
300 X 39
0.15 X 0.27
95-400
10 OR 20
350 X 38
0.15 X 0.27
95-400
10 OR 20

SS302 304 Fine Wire Mesh Screen For PP PE Plastic Industry SGS Standard/SS 304 10m length dutch weave wire mesh

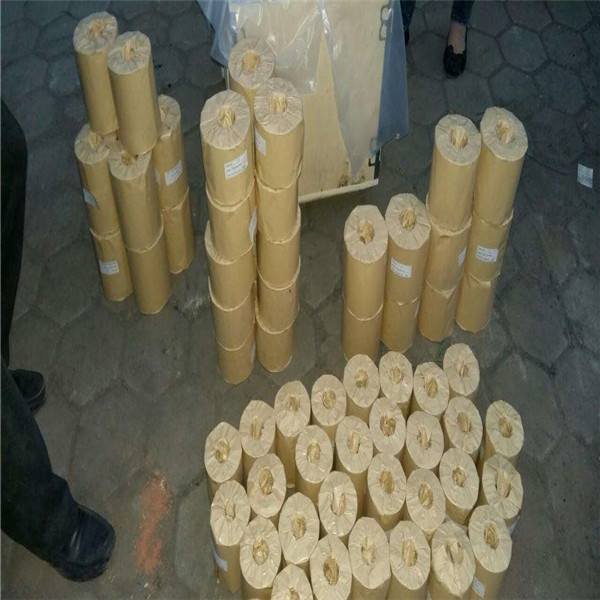

Package

Waterproof brown paper for moisture resistance.
Plastic paper for dust resistance.
Wooden box or pallet for convenient to load and transport
SS302 304 Fine Wire Mesh Screen For PP PE Plastic Industry SGS Standard/SS 304 10m length dutch weave wire mesh
SS302 304 Fine Wire Mesh Screen For PP PE Plastic Industry SGS Standard/SS 304 10m length dutch weave wire mesh

Our Services


Reply your inquiry in 24 working hours.
Customized design is available.
Answer your questions and provide high quality products.
Provide good after- sales service.
Provide newest product information and prices.
